• Classe IP: IP-54.
• Lenti: in policarbonato resistente al calore e agli urti.

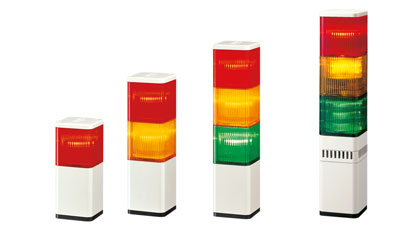

• I moduli luminosi possono essere impilati per formare un massimo di 4 livelli in qualsiasi combinazione di colori.
• Ogni modulo luminoso dispone di un microinterruttore integrato per attivare o disattivare il controllo della luce.
• Le unità luminose e l'unità base sono vendute separatamente.
• La capacità operativa massima dell’unità base è di 21 Watt.
• Il modello KUS-F lampeggia 60 volte al minuto.
DIMENSIONS | - 70mm square |
---|---|
RATED VOLTAGE | - 24V AC/DC - 100V AC - 220V AC |
FUNCTIONS | - Continuous - Continuous and Flashing - Alarm (optional) |
MOUNTING | - Direct Mount - Indoors (Upright Only) |
BODY STYLE | - Square base - Colored lens - Component style, pre-wired base - Interchangeable and stackable after purchase* * One alarm module allowed, must be mounted next to base |
BODY COLOR | - Body: Beige |
STACKABLE TIERS | Up to 4 of the following on one base unit: - Incandescent bulb style module - LED style module - Alarm module |
GLOBE COLOR | - Bulb Type: Red / Amber / Green / Blue / Clear - LED Type: Red / Amber / Green / Blue / Clear |
GLOBE MATERIAL | - Polycarbonate Resin |
AUDIBLE STYLE | - Max. 70dB at 1 meter (AC/DC24V base) - Max. 80dB at 1 meter (AC120V base) |
CONFORMITY STANDARDS | RoHS:KUS-24(F)/KUS-EA |
PROTECTION RATING | - IP-54 |
OPTIONS | - SZ-40L - SZ-40T - SZ-007 |
