- Disponibile con alimentazione 12VDC, 24VDC, 48VDC e 90-250VAC

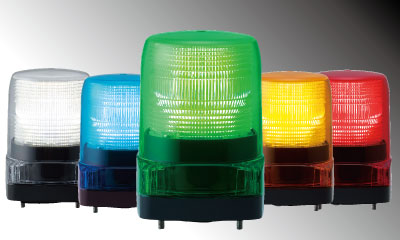

- Cinque colori della cupola: rosso, giallo, verde, blu e trasparente.
- Triplo-flash (110 fpm ±10%)[LFH]
(140 fpm ±10%)[LFH-S]
- Uso interno/esterno
- IP66 (IEC60529)
- Resistenza alle vibrazioni fino a 9G (90m/s2)
- Conforme alla direttiva RoHS
- CAN/ULC-S526-M87
- Marcatura CE (esclusa la versione a 48VDC)
- UL 1638
- FCC Parte 15 subparte B classe A (esclusa la versione a 48VDC)
| DIMENSIONS | - φ100 diameter |
|---|---|
| RATED VOLTAGE | - DC 12V - DC 24V - DC 48V - AC 90 - 250V |
| FUNCTIONS | - Dimming - Triple-flash (110 fpm ±10%)[LFH] (140 fpm ±10%)[LFH-S] |
| MOUNTING | - Direct or use optional brackets |
| BODY STYLE | - For Indoor or Outdoor Use |
| BODY COLOR | - Black Body |
| LIGHT SOURCE | - High-power LED |
| CONFORMITY STANDARDS | - CAN/ULC-S526-M87 - CE (Excluding 48V Model) - UL 1638 - FCC Part 15, Subpart B Class A (Excluding 48V Model) -RoHS Directive |
| PROTECTION RATING | - IP66 (IEC60529) |
| REMARKS | Colors Available: - Red - Amber - Green - Blue - Clear/White |
| OPTIONS | - SZ-007 Standard Mounting Bracket |
