• Configura liberamente le diverse combinazioni di colori e allarmi acustici per indicare infiniti stati macchina.
• Scegli tra le diverse impostazioni per migliorare la visualizzazione delle condizioni operative.
• Scarica Revolite Editor, il software gratuito che permetterà di configurare facilmente la torretta LA6 e personalizzare la visualizzazione di diversi segnali di avvertimento e di allarme.
DIMENSIONS | - 60mm Diameter |
---|---|
RATED VOLTAGE | - 24V DC - 100V - 240V AC (WJ Type Only) |
FUNCTIONS | Operates in three different display modes: - Single Display - Time-trigger Display - Pulse-trigger Display |

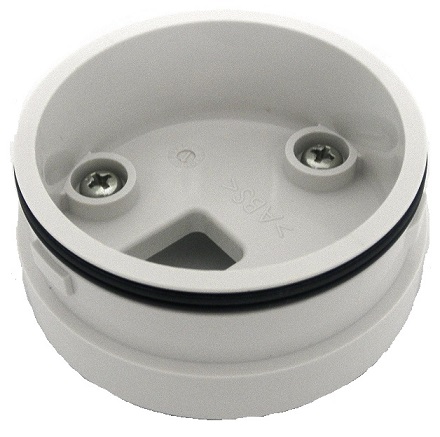

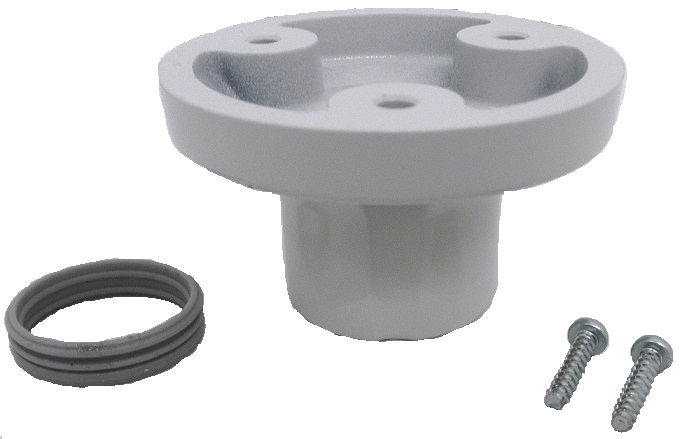

MOUNTING | - Direct Mounting (TN, WJ Type) - Steel Pole Mounting (LJ Type) |

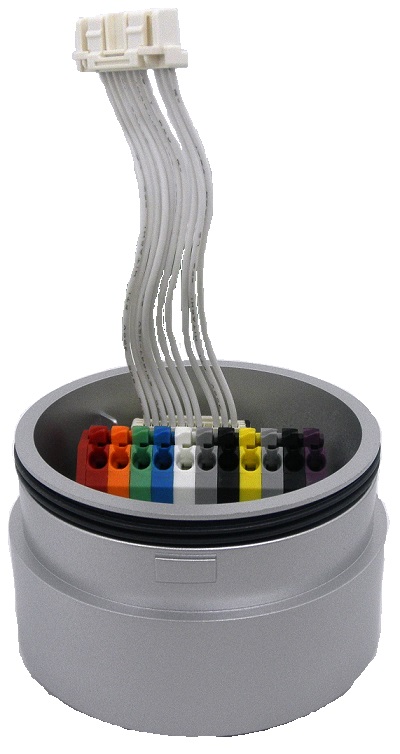

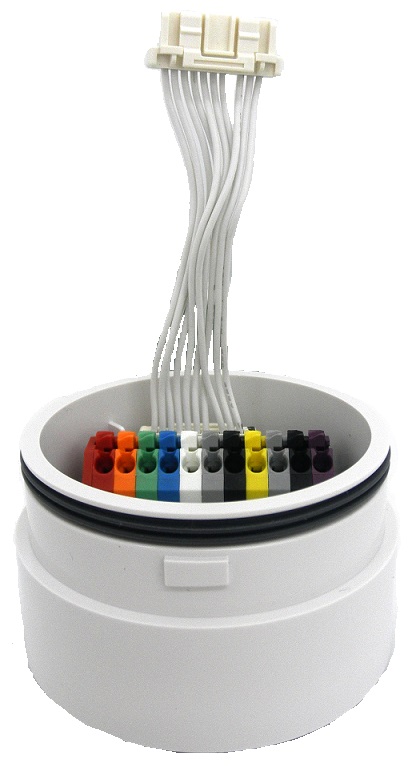

BODY STYLE | - TN : Screwless Terminal - LJ : Pole with Cable Connection - WJ : Direct Mount with Cable Connection |
BODY COLOR | - Off-white - Silver |

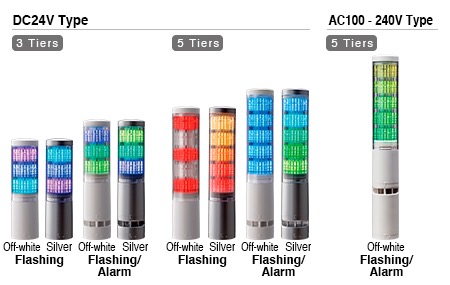

STACKABLE TIERS | - 3 Tier - 5 Tier |
MODULE COLORS | 21 colors |
AUDIBLE STYLE | 11 alarm sounds available |
CONFORMITY STANDARDS | - EMC Directive - RoHS Conformity - UL 508 - FCC - KC - CE |
PROTECTION RATING | - IP 65 - IP54 with Alarm |
REMARKS | - Free downloadable application software - UL Recognized Components (24V type only) |
