IO-Link Signal Beacons
NE-IL

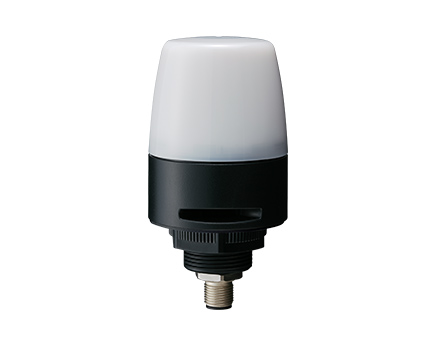

IO-Link Signal Beacons
The IO-Link Indicator Series seamlessly installs into IO-Link masters and features multi-color LEDs with a touch sensor and rugged housing.

Caratteristiche del prodotto


  • Capacitive touch sensor enables real-time status confirmations

  • Equipped with a Digital/Analog input function for connecting devices not compatible with IO-Link. The NE-IL acts as an I/O hub, able to send data from sensors to the IO-Link master

  • Features an M12 connection for quick and easy installations

  • Status indicator devices connected to an IO-Link master can be controlled collectively

  • Real-time notification of equipment abnormalities enables operators to perform maintenance right away, reducing bottlenecks and downtime

  • Up to 7 colors can be emitted to indicate different equipment conditions

  • High protection rating for operation in harsh environments

  • Frosted lens displays evenly distributed light for unambiguous indication







  • Model Specifications

     Model NE-ILNB-M

    With buzzer

     NE-ILTB-M

    With buzzer
    and touch sensor
     NE-ILXB-M

    With buzzer, touch sensor,
    and digital / analog input
    Sizeφ56mm
    Rated Voltage24V DC
    Mounting Location / Mounting DirectionIndoors, Upright
    Protection RatingIP65 NEMA TYPE 4X, 13
    LED ColorMulti-color (Red, Amber, Green, Blue, White, Purple, Cyan)
    LED Unit ModesContinuous / Flashing
    Sound PressureTyp. 88 dB [8 sound types (Selectable)]
    Conformity Standards●EMC Directive (EN 61000-6-4, EN 61000-6-2) ●RoHS Directive (EN 50581)
    ●UL 508, CSA-C22.2 No. 14 ● FCC Part 15 Subpart B Class A
    ● KC (KN 61000-6-4, KN 61000-6-2)
    ConnectionM12 connector 5 pins A codeM12 connector 8 pins A code

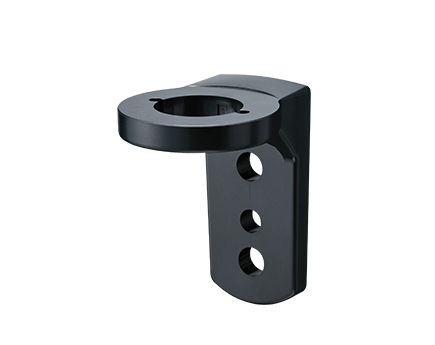

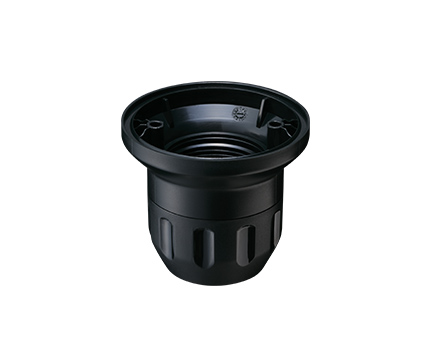

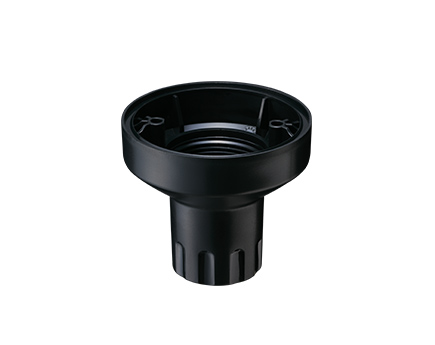

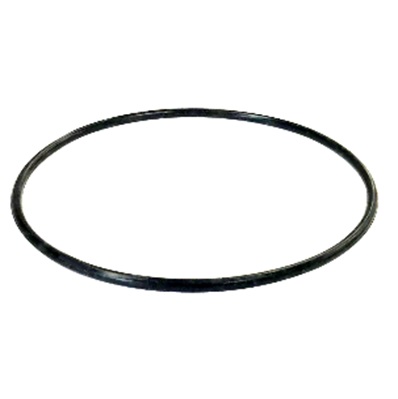

Accessories
