Ricevitore del sistema di acquisizione dati wireless WD PRO
WDR-LE-Z2-PRO

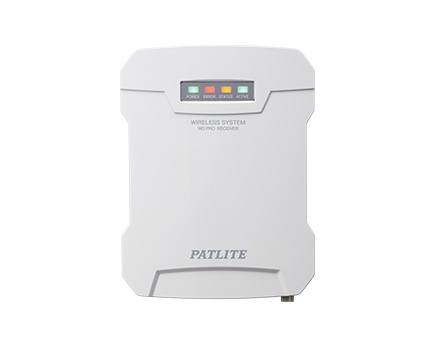

WDR-LE-Z2-PRO (ricevitore WD PRO) è un ricevitore che fa parte del sistema di acquisizione dati wireless di PATLITE. Questo sistema di acquisizione dati è in grado di ricevere e monitorare in tempo reale, in modalità wireless, gli stati delle luci e del buzzer delle torrette di segnalazione collegate. Questi dati possono essere estratti ed analizzati per migliorare OEE e produttività. Il nuovo ricevitore del WD-PRO è una versione migliorata dei precedenti ricevitori e supporta un'ampia varietà di protocolli, consentendo una facile comunicazione con il sistema host e con altri dispositivi del sito produttivo.

  • Prodotti wireless
  • Senza fili (Zigbee)
  • Interno
  • IP20
  • Ricevitore del sistema di acquisizione dati wireless WD PRO WDR-LE-Z2-PRO
  • Capacità PoE
     Il ricevitore WD PRO può gestire sia l'alimentazione che i dati tramite un singolo cavo Ethernet, in modo da ridurre al minimo il cablaggio e i relativi costi.
  • Staffa di fissaggio
     L'unità principale del ricevitore WD PRO richiede un montaggio a click su una staffa per superficie piana.
     Ciò consente un facile attacco e distacco, nonché la versatilità nell’angolazione della superficie di montaggio.
  • Diagnostica connessione wireless
     Il nuovo ricevitore WD PRO è in grado di rilevare la qualità della connessione wireless tra il ricevitore e i trasmettitori collegati.
     È possibile collezionare fino a 72 ore di risultati della diagnosi, a intervalli di 10 minuti.
     Esistono 5 livelli di risultati della diagnosi, che consentono di identificare le situazioni in cui è necessario modificare l'ambiente di installazione.
     I dati raccolti possono essere facilmente visualizzati sul computer tramite il browser.
  • Display Andon
     Gli stati delle luci e del buzzer di tutte le torrette di segnalazione collegate, possono essere visualizzati in tempo reale sullo schermo del computer tramite il browser.
     Questo può essere fatto contemporaneamente alla raccolta dati.
  • Protocolli di comunicazione
     Oltre al semplice protocollo SOCKET, il ricevitore del WD PRO utilizza anche protocolli di comunicazione Modbus / TCP e database SQL.
       Questi protocolli semplificano la comunicazione e la raccolta dati tra i dispositivi della rete.



Specifiche

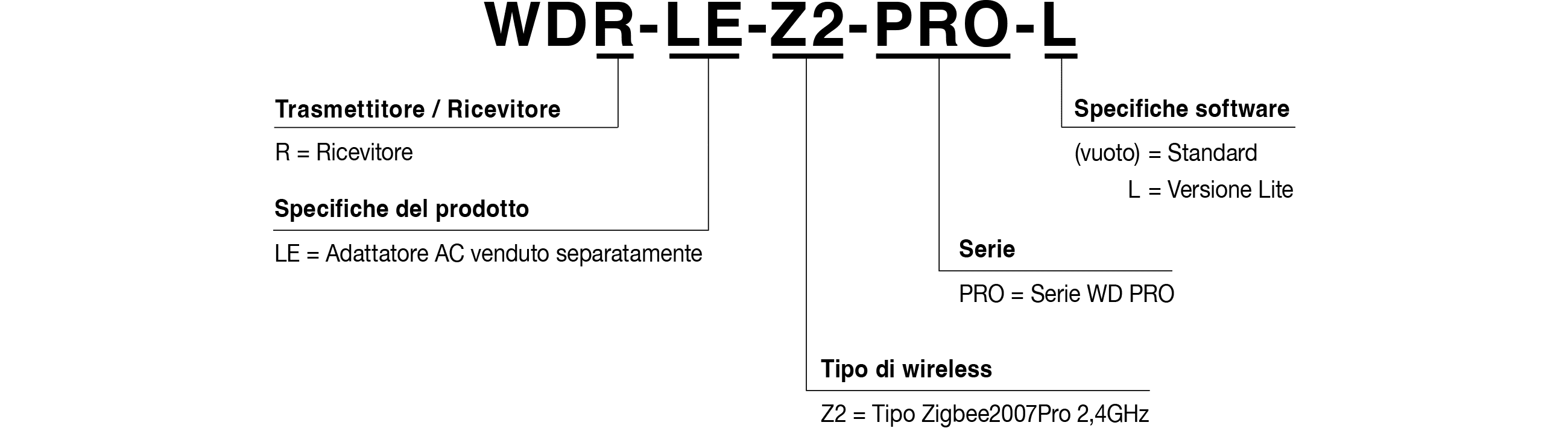

Modello Ricevitore del sistema di acquisizione dati wireless
WD PRO
WDR-LE-Z2-PRO
Ricevitore del sistema di acquisizione dati wireless
WD PRO〈Versione semplificata〉
WDR-LE-Z2-PRO-L
Ingresso alimentazione 24V DC / USB / PoE
Metodo di montaggio Montaggio orizzontale / Montaggio a parete / Montaggio a soffitto
Metodo di comunicazione di rete 10BASE-T / 100BASE-TX / 1000BASE-T
Numero di trasmettitori collegabili con 1 ricevitore Massimo 30 unità
Distanza di comunicazione Circa 30 m in assenza di ostacoli *1
Impostazione dell'indirizzo IP Impostazione manuale / configurazione automatica DHCP
Temperatura ambiente (funzionamento) -10℃~+50℃ (Adattatore AC: 0℃~+40℃)
Grado di protezione IP20
Diagnostica connessione wireless Diagnosi in tempo reale / diagnosi a lungo termine (1~72 ore)
Impostazioni wireless del trasmettitore Installazione integrata tramite browser /
software WDS-WIN01
Usa WDS-WIN01
Comunicazione del sistema host ・File CSV * Utilizzare WDS-WIN01・Comunicazione SOCKET
 (Protocollo WDR)・Comunicazione SOCKET
 (Protocollo WDR PRO)・Collegamento al database (MySQL)・Comunicazione Modbus / TCP WD-PRO
WD-PRO ・File CSV * Utilizzare WDS-WIN01・ Comunicazione SOCKET
 (Protocollo WDR)
Andon Display ×

※1 A causa delle caratteristiche delle onde radio, il valore è da ritenersi puramente indicativo.
