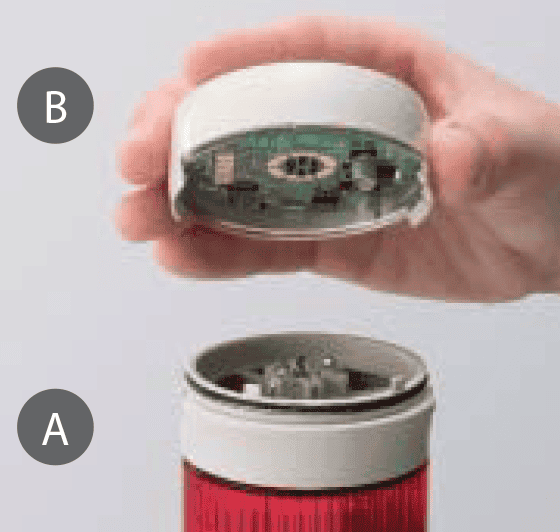

Il trasmettitore WDT-5E-Z2 può essere facilmente installato sulla torretta di segnalazione LE, bisogna solo rimuovere il coperchio superiore della torretta ed avvitare il trasmettitore.
| DIMENSIONS | - φ65×38.5mm |
|---|---|
| OPERATING VOLTAGES | - Rated Voltage: DC24V (Non-polar) - Operating Voltage Range: DC21.6V to DC26.4V |
| PROTOCOLS | - Description: Signal Tower LE Transmitter - Maximum Relay Connections: 5 Relays - Protection Rating: Conforms to LE Standards |
| FUNCTIONS | - Operating Temperature Range：-10℃ to 60℃ （No Condensation ) - Operating Humidity Range： 85% RH or less（No Condensation） - Storage Temperature Range：-20℃ to 70℃（No Freezing） - Installation： Upright Position（Indoor Only） |
| BODY STYLE | - Description: Signal Tower LE Transmitter |
| BODY COLOR | - Body: Beige |
| CONFORMITY STANDARDS | - FCC - NCC - NBCT - SDPPI - SRRC |
