Caratteristiche del prodotto

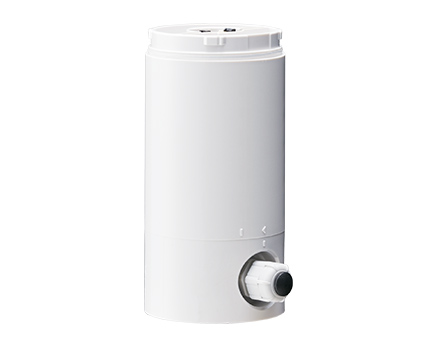

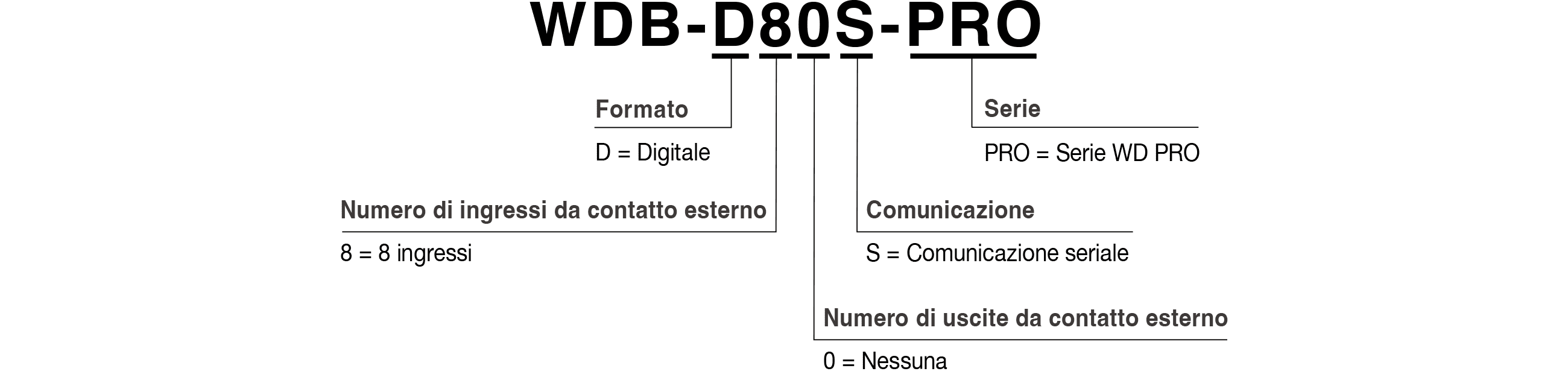

WDB-D80S-PRO can only be used for WDT-6LR-Z2-PRO

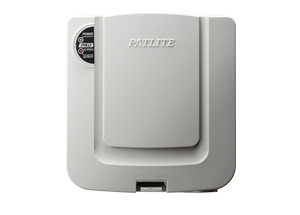

It can be mounted on the transmitter WDT-6LR-Z2-PRO for WD PRO.
- Features a serial communication interface to attach devices such as a barcode reader to trace detailed employee data and control product quality. Obtain up to 60 bytes of serial data total.
- Equipped with 8 contact inputs enabling acquisition of up to 255 data codes. Supports NPN/PNP/relay contact; output can be a decimal, binary, or hexadecimal number.
- Features 2-way wireless communication to remotely trigger tower light signals from host PCs.
- The WDS-WIN01 (ver. 1.03 or later) allows you to export data as a CSV file which can be easily manipulated for various calculations and charts.
|Rated Voltage||24V DC|
|External Contact Input||Signal tower inputs (red, yellow, green, blue, white, buzzer);|
8 external contact inputs; 1 reset input; serial communication input
