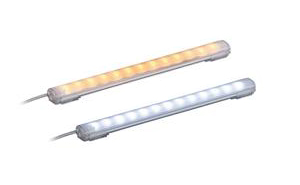

La barra luminosa a LED della serie CLA produce una luce brillante e uniforme in un involucro classe IP-69K. Ideale per applicazioni di lavaggio ad alte temperature e applicazioni alimentari e farmaceutiche, ma anche per l’illuminazione di pannelli di controllo e postazioni di lavoro. Le 4 opzioni di montaggio e le 6 lunghezze da 100 mm a 1.200 mm rendono il prodotto ideale anche per valutare la sostituzione di tubi fluorescenti.
DIMENSIONS | Overall dimensions without brackets ・ 124mm x 30mm x 19.5mm ・ 224mm x 30mm x 19.5mm ・ 324mm x 30mm x 19.5mm ・ 624mm x 30mm x 19.5mm ・ 924mm x 30mm x 19.5mm ・ 1224mm x 30mm x 19.5mm |
RATED VOLTAGE | 24V DC |
FUNCTIONS | Continuous Only |
MOUNTING | ・ Snap-in screw mounted bracket ・ Snap-in magnetic mounted bracket ・ Side mounted brackets ・ Indoor, any direction |
BODY STYLE | ・ Polycarbonate housing ・ Pre-assembled, pre-wired |
BODY COLOR | Body: Translucent-white |
LIGHT SOURCE | ・ High-intensity LED chip, Daylight ・ High-intensity LEDchip, Amber (324mm sizes only) ・ Average Service Life (specified when brightness dereases to 70%) : 40,000 hours |
LENS MATERIAL | Translucent-white Polycarbonate Resin |
CONFORMITY STANDARDS | ・ CE Marking ・ UL ・ RoHS |
PROTECTION RATING | ・ IP66 ・ IP67 ・ IP69K |
