Φ40mm Torrette di Segnalazione LED
Serie LR4

Scopri la serie LR4 Torrette di Segnalazione LED da 40mm, caratterizzate da LED ultra-luminosi, design modulare e opzioni diversificate per affrontare le applicazioni più esigenti.

  • Controllo I/O
  • Colonne luminose
  • Φ40
  • Continuo acceso
  • Lampeggiante (stroboscopico)
  • Allarme
  • 85dB
  • Interno
  • IP65
  • IP54
  • Rosso
  • Ambra
  • Verde
  • Blu
  • Bianco

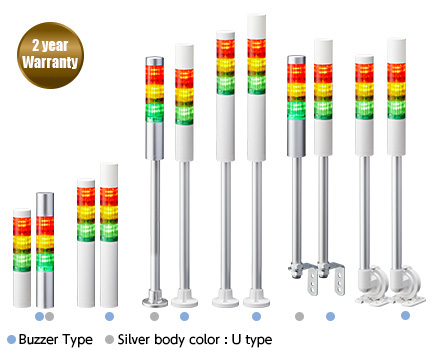

  • Φ40mm Torrette di Segnalazione LED Serie LR4
  • Lenti riprogettate e migliorata costruzione del modulo che offrono una luce brillante e uniforme per la visibilità a distanze maggiori.
  • Modulo sonoro completamente riprogettato e chiuso, che mantiene una protezione sostanziale contro acqua e polvere producendo un suono forte e omnidirezionale. (LR5 12V DC: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB a 1m)
  • Design modulare "Twist and Lock" per personalizzare e configurare facilmente i moduli LED e i moduli sonori sul campo.
  • Forma elegante e liscia e costruzione del corpo robusta per prestazioni in ambienti difficili, con grado di protezione IP65.

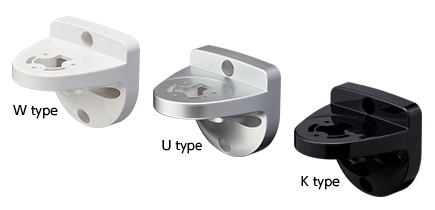

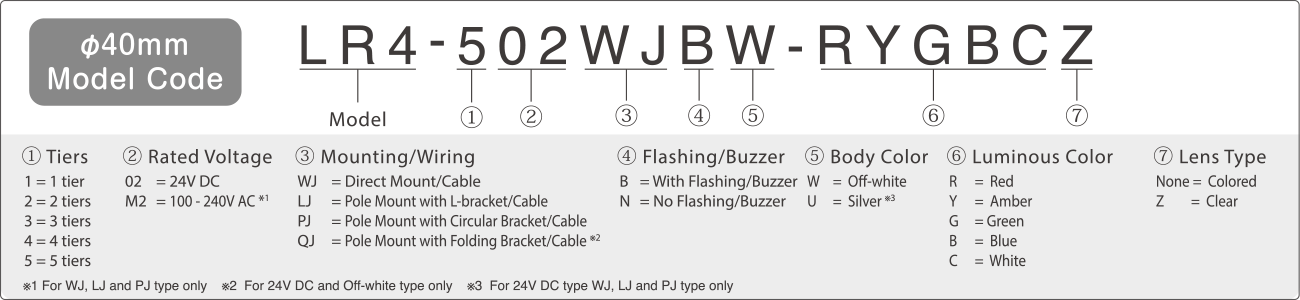

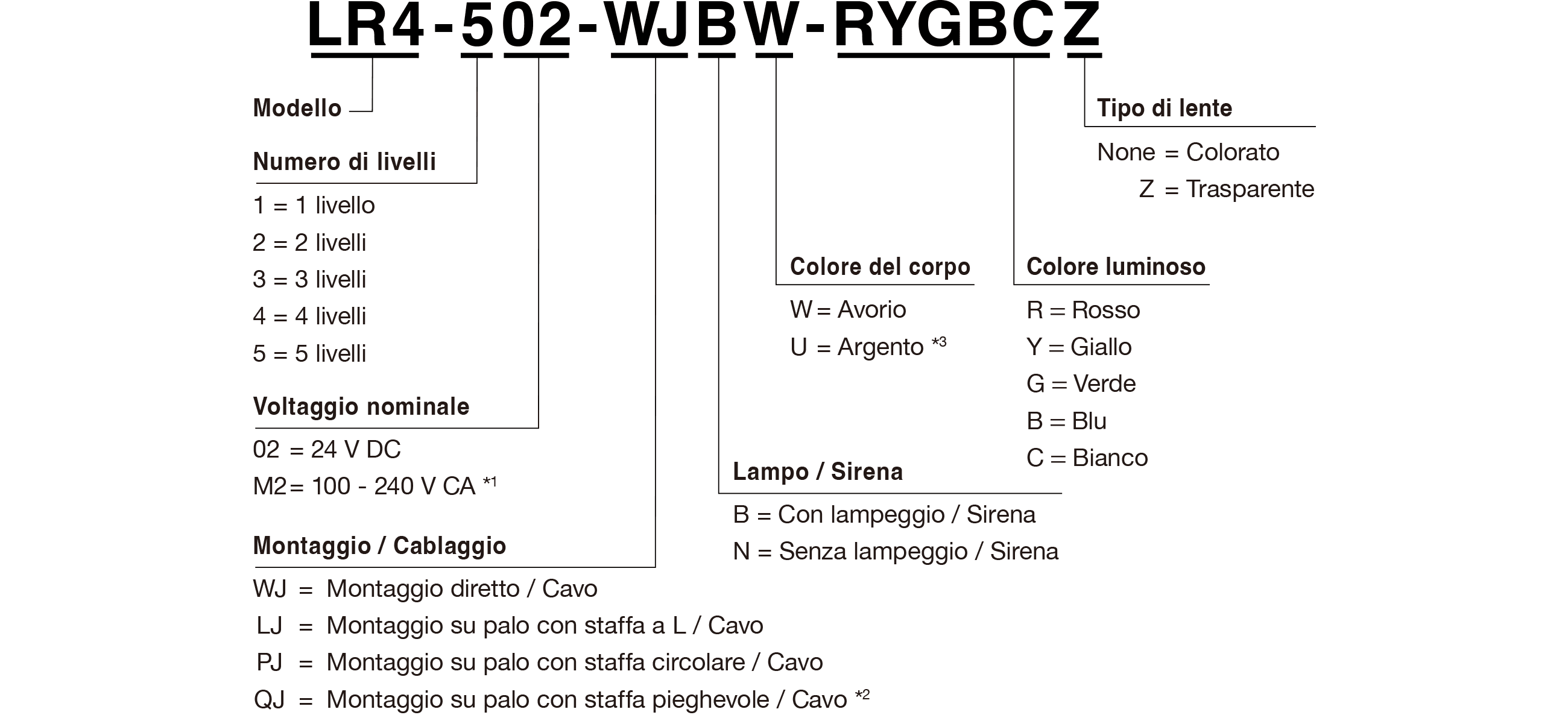

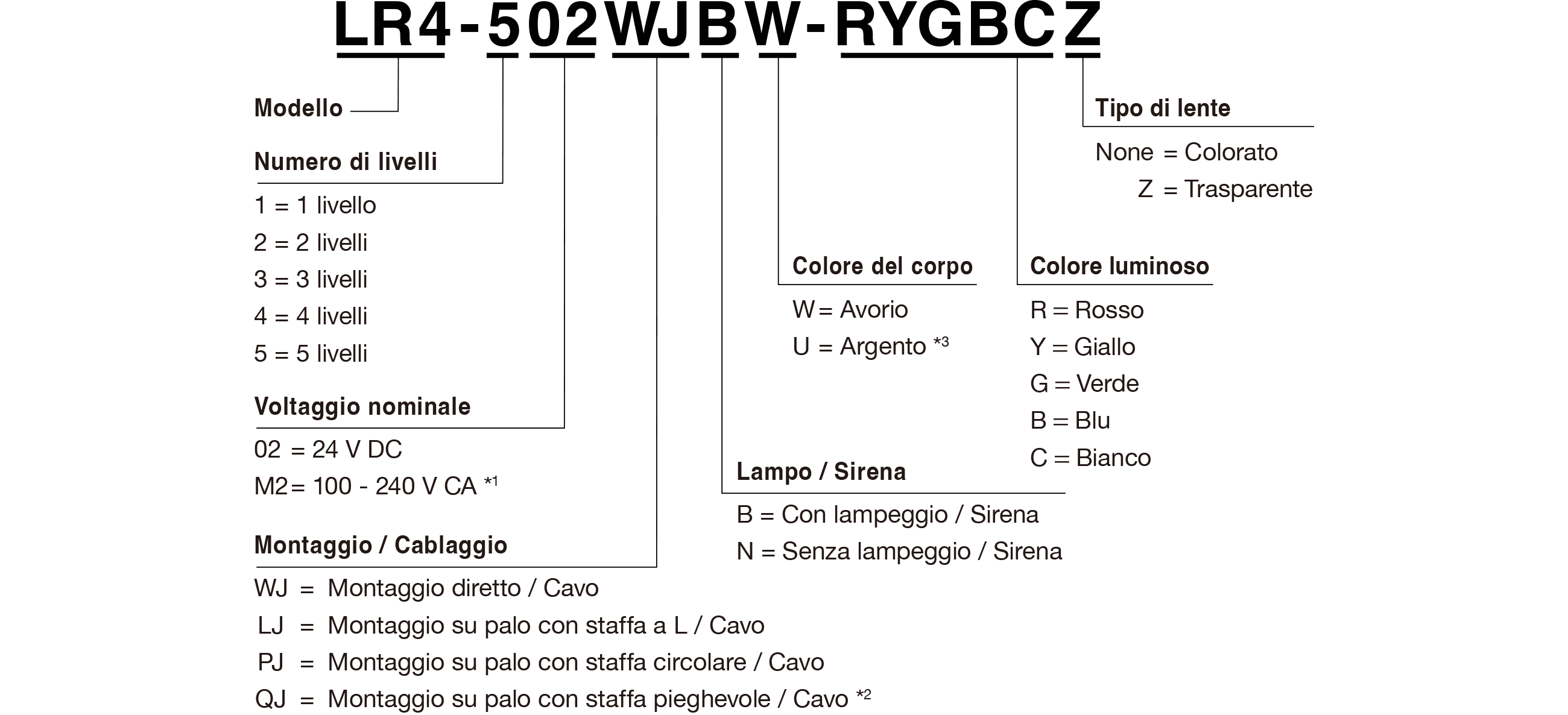

  • Quattro opzioni di montaggio: Diretta, su palo con staffa a L, su palo con staffa circolare e su palo con staffa pieghevole (solo bianco sporco).
  • Disponibile in 24V DC e 100-240V AC (solo bianco sporco).
  • Disponibile in corpi di colore bianco sporco e argento.
  • Disponibile con lente trasparente (ordine speciale).

Specifiche

Temperatura ambiente di funzionamento -20℃ - +50℃
Gamma di umidità di funzionamento 90% RH o meno, senza condensa
Gamma di temperatura di stoccaggio -30℃ - +60℃
Gamma di umidità di stoccaggio 90% RH o meno, senza condensa
Posizione di montaggio Uso interno
Direzione di montaggio Posizione verticale
Grado di protezione*1 IP65 (IEC 60529) / NEMA TYPE 4X, 13
Condizioni ambientali Posizione verticale
Resistenza all'isolamento Maggiore di 1MΩ a 500V DC tra il cavo di alimentazione e il telaio
Tensione di tenuta 500V AC per 1 minuto tra i terminali e il telaio senza rottura dell'isolamento (M2: 1500V AC per 1 min.)
Frequenza di lampeggio 60 ±2 lampeggi / min.
Livello sonoro LR4 Tip. 85dB
Riduzione del suono*2 Riduzione di circa -10dB
Condizioni ambientali Suono del cicalino n.4 (Sweep) da tutte le direzioni a una distanza di 1m
Suono del cicalino 4 modelli*2
No.1 Beep rapido intermittente / 3378Hz
No.2 Suono beep continuo / 3378Hz
No.3 Hi-Lo rapido / 2016Hz & 3012Hz
No.4 Suono Sweep / 1000Hz-4032Hz
Uscita transistor NPN / PNP (100V - 240V AC è solo NPN)
Standard di conformità ●UL 508, CSA-C22.2 No.14
●FCC Part 15 Subpart B Classe A
●Direttiva RoHS (EN IEC 63000)
●Direttiva EMC (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3
●Direttiva Bassa Tensione (IEC/EN 60947-5-1, EN62471)*4

*1: Il tipo LJ è IP54
*2: Dipende dalle impostazioni del DIP Switch
*3: Tranne KT, modello di assemblaggio WT e tipo M2 LJ
*4: Solo tipo M2 (tranne tipo LJ)



Specifiche dell'unità LED

Colore Rosso Ambra Verde Blu Bianco
Corrente del filo di segnale (per unità) /
Consumo energetico nominale (per unità)
Tip. 40mA / 1W
Max. 45mA / 1.3W



Specifiche dell'unità cicalino

Corrente del filo di segnale (unità cicalino) /
Consumo energetico nominale (unità cicalino)
Tip. 40mA / 1W
Max. 250mA / 1.3W
