Correspond to SNMP Protocol
• Cooperate with various kinds of network devices that support SNMP protocol
• Possible to send SNMP Trap Exclusive MIB loaded
• Network Monitor Signal Tower loads the exclusive MIB to control itself with SNMP Ping Monitoring
• Monitor the health of (up to) 16 network devices using Ping Corresponds to RSH Command
• Warning light, flashing, buzzer can be easily activated by RSH command Prevent unauthorized access and information leakage
• By cooperating with an Asset Management Software, warning light, flashing and buzzer can be activated as warning when
unauthorized access is attempted

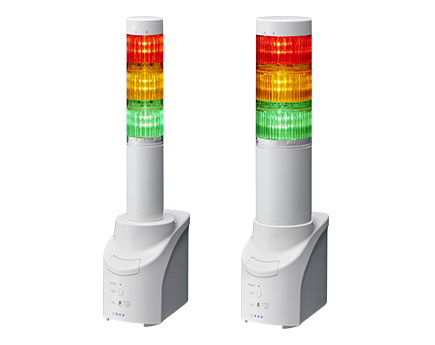

| DIMENSIONS | - Tower diameter: 60mm (NHL), 40mm (NHP) |
|---|---|
| RATED VOLTAGE | 24V DC (AC Adaptor 100V AC ~ 240V AC) |
| PROTOCOLS | - Network Layer: IP/ICMP/ARP - Physical Layer: 10 BASE-T/100 BASE-TX - Data Link Layer: CSMA/CD - Network Layer: IP/ICMP/ARP - Transport Layer: TCP/UDP - Application Layer: HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP |
| FUNCTIONS | - Ping Device Monitor - RSH Command - SNMP v1・v2 - Self-diagnosis - Application Monitor - SOCKET - E-mail Transmission |
| BODY STYLE | - Interface Converter Base: Off-white - Tower: Off White |
| STACKABLE TIERS | - 3 tiers only |
| MODULE COLORS | - LED source Color: Red / Amber / Green (only) - Lens Color: clear Lens |
| AUDIBLE STYLE | - Alarm 1: selectable, Slow Intermittent - Alarm 2: selectable, Fast Intermittent - Alarm 3: Fast Burst - Alarm 4: Continuous |
| CONFORMITY STANDARDS | - RoHS Directive (EN IEC 63000) - EMC Directive (EN 55032, EN 55024) - FCC Part15 Subpart B Class B, ICES-003 Class B - PSE Compliant AC Adaptor CE Marking W type is an international model. |
